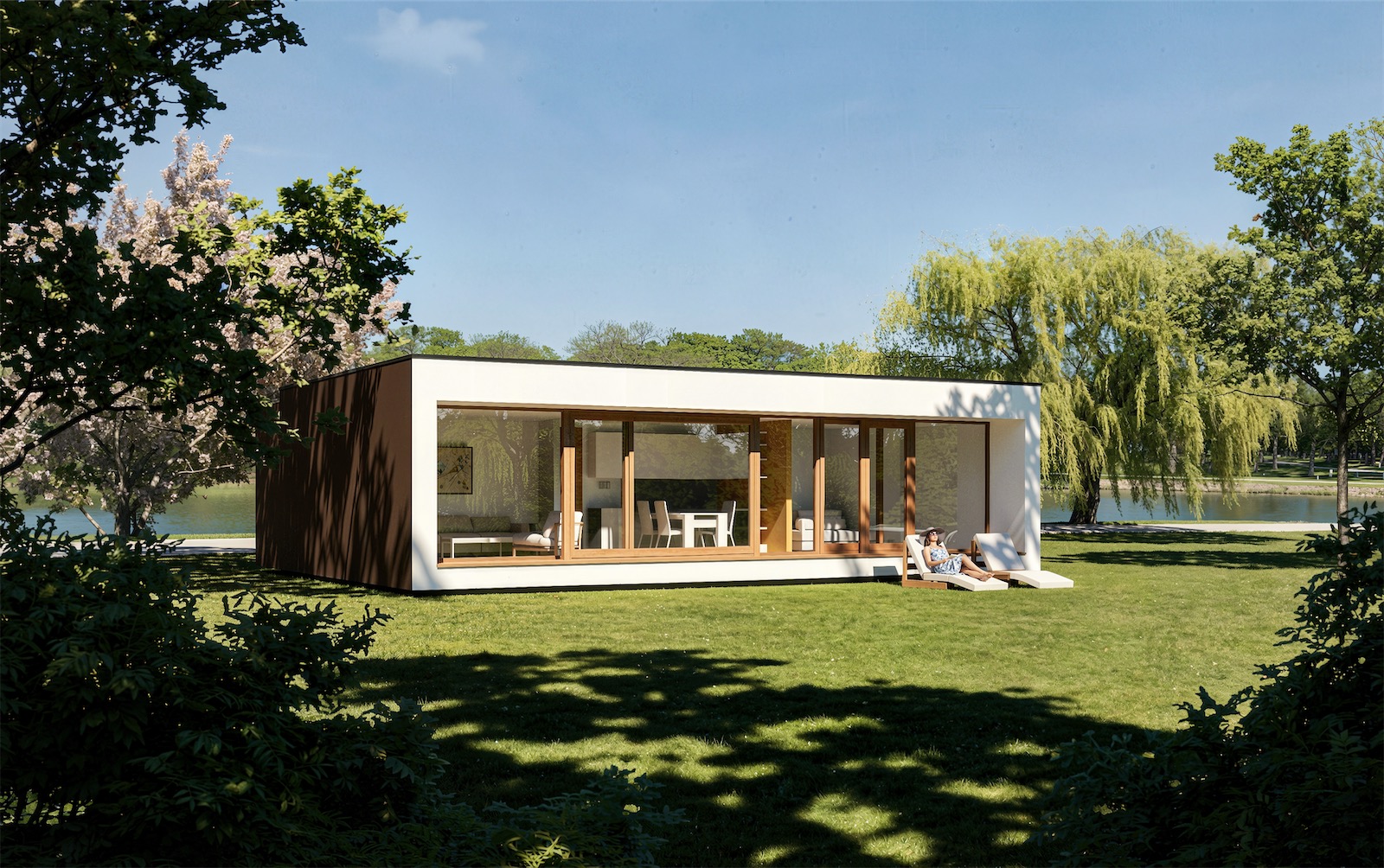

Prefabricated house ek 014

The image is symbolic

Prefabricated house ek 014

Share
Total area
55,50
Type
assembly house
Building area
87,15

Description

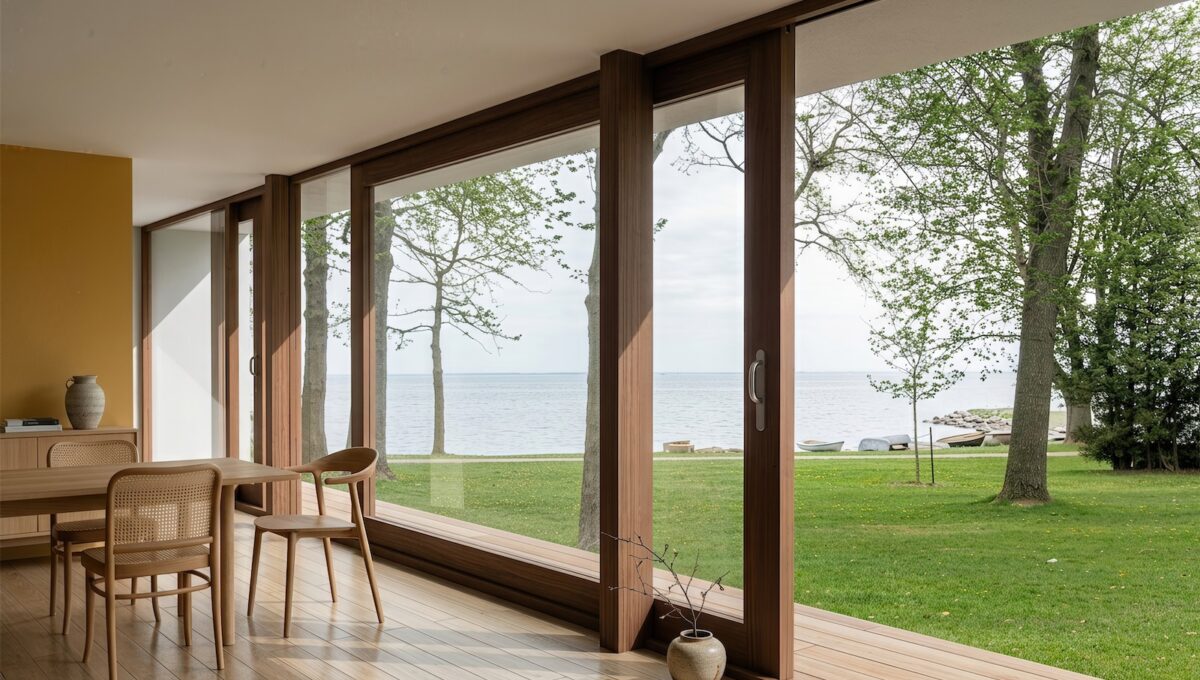

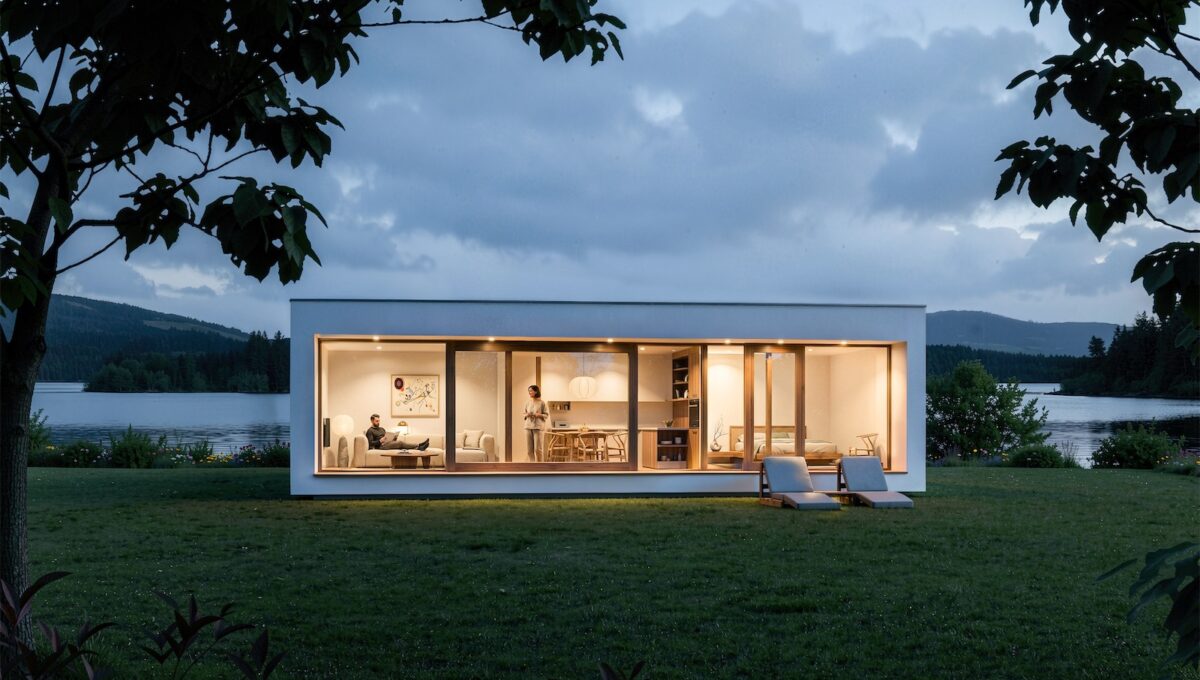

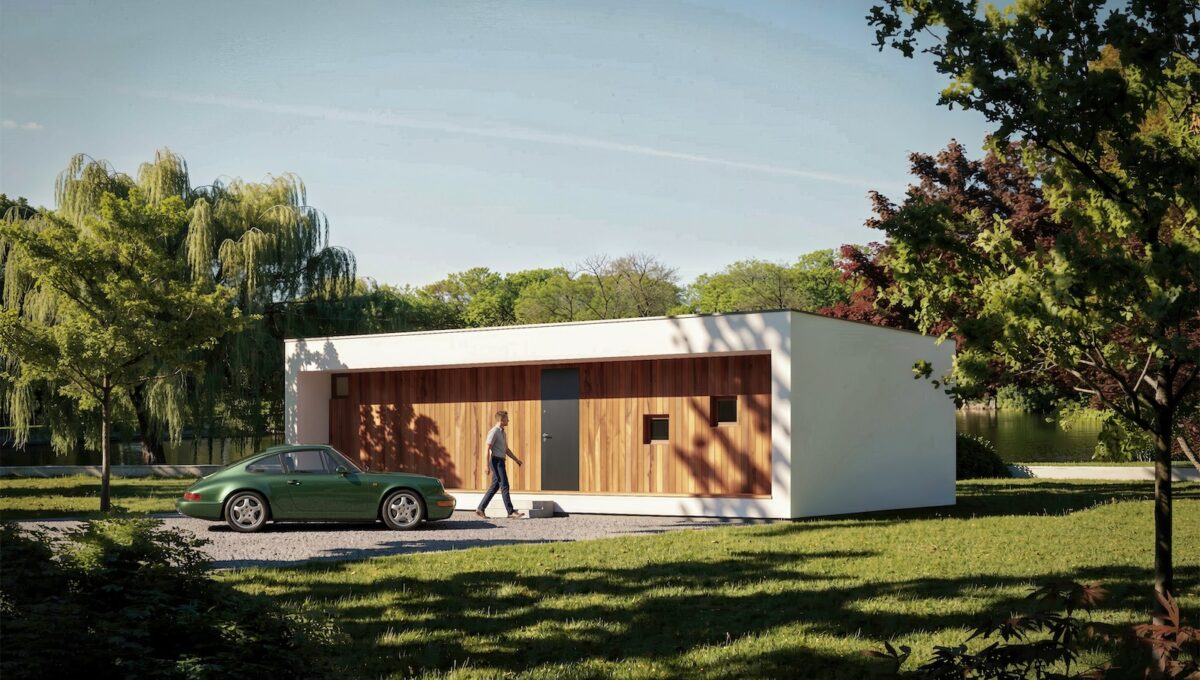

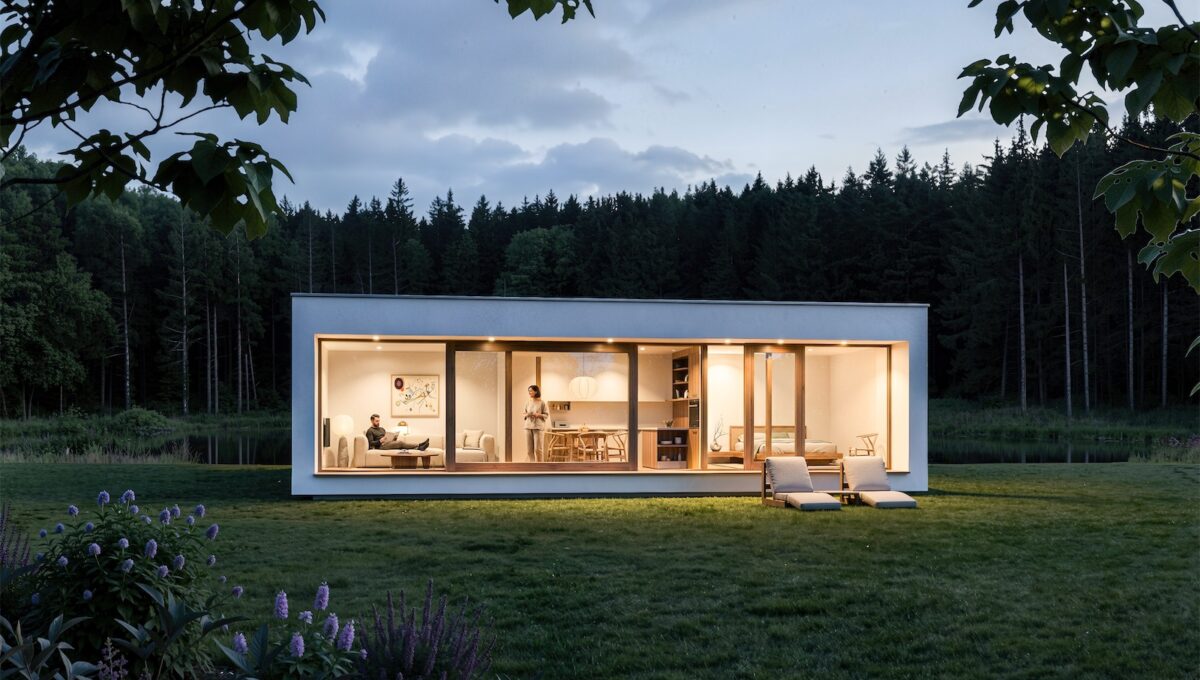

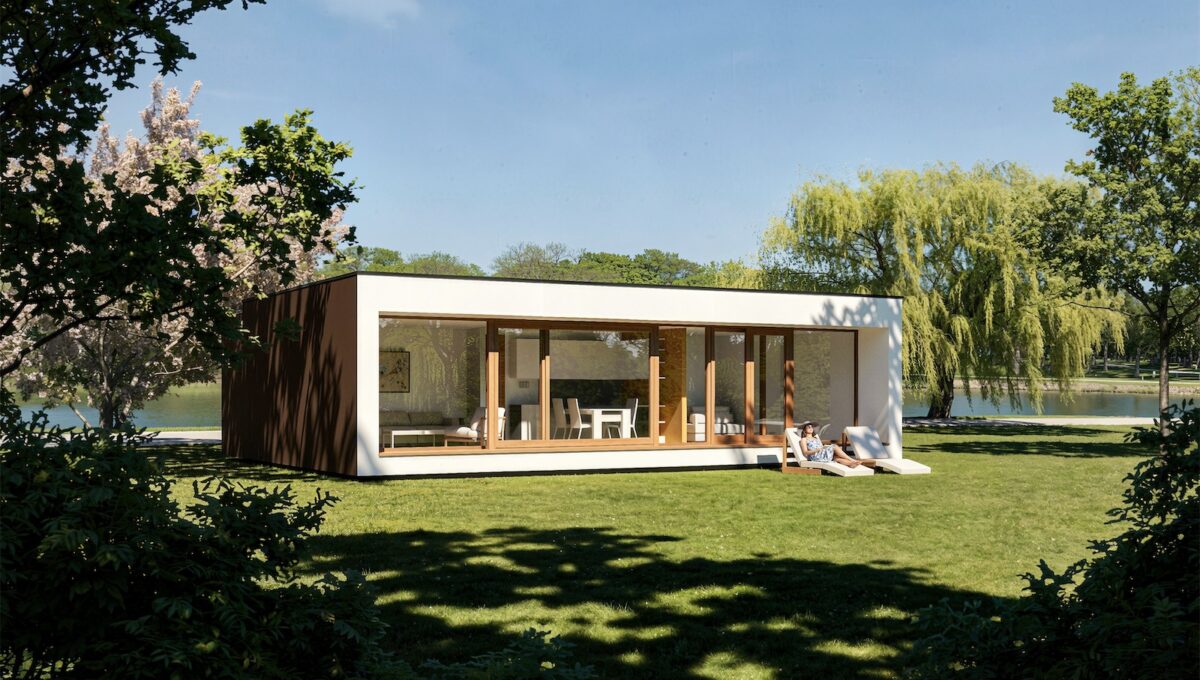

Prefabricated house ek 014 is a redesigned ek 006. This contemporary, pavilion-like, house stays true to our philosophy of connecting the house to outside nature. While having only modest openings on three facade walls, the wall facing south has panoramic windows which open to the terrace and further into the garden. With correct orientation, the ek 014 stays true to our low-energy philosophy. The overhung roof design allows for the panoramic glazing to remain open even during the rain.

Additional details

  • layout: 55,50 m²
  • building area: 87,15 m²
  • nett volume: 138,75 m³
  • gross volume: 278,88 m³
Aditional costsPhase and building description
+ elements transportbuilding phase (PDF)
+ crane on sitebuilding description (PDF)
+ staff transport‘turn key’ - executed by local
+ staff manipulationrepresentative or contractor

Please contact our sales dept or representative for final clearance:

sales@ekokoncept.com

+ 386 31 809 298

Price from (VAT excluded)

46676

Floor Plans

Ground floor

55,50 / 21,20 m²

Room nameArea

Assignment

1. hallway5,30 m²
2. storage room5,45 m²
3. bathroom5,45 m²
4. kitchen + dining room13,10 m²
5. living room13,10 m²
6. bedroom13,10 m²
7. terrace 0110,60 m²
8. terrace 0210,60 m²
